Cleaner coating quality
Filtered supply air reduces dust and particle defects on painted surfaces.
COATING FACILITIES / CONTROLLED AIRFLOW
Dust-Free Spray Booth Series
Filtered, balanced painting environments for cleaner finishes and safer production.
Air treatmentMulti-stage filtration
AirflowBalanced downward flow
Booth typesMobile to large industrial
ControlPaint & curing modes
PRODUCT OVERVIEW
Engineered around the process, pollutant and production line.
The booth conditions incoming air through primary and intermediate filtration before distributing it through the workspace. Overspray and airborne particles are carried away through the return-air or exhaust path.
Configurations include integrated mobile paint rooms and large industrial booths with optional heating and curing cycles.
Performance that translates into practical operation
Controlled airflow
Designed air paths carry overspray away from the workpiece and operator zone.
Modular sizing
Booth dimensions and door arrangements can follow the workpiece and production flow.
Integrated curing
Optional hot-air circulation supports controlled drying and baking cycles.
A clear route from collection to controlled discharge
01
Fresh-air intake
Draw outdoor air through the initial filtration stage.
02
Conditioning
Filter and, where required, heat the incoming air.
03
Air distribution
Deliver clean air evenly through ceiling or wall plenums.
04
Paint capture
Move overspray and particulates toward floor or side extraction.
05
Exhaust or recirculation
Treat and discharge air or recirculate it in the selected operating mode.
APPLICATION RANGE
Configured for the conditions that matter at your site
Final sizing, materials, controls and safety provisions are selected from the exhaust or process data supplied for the project.
TECHNICAL CHARACTERISTICS
Designed for dependable industrial service
- Primary and intermediate air filtration
- Balanced ventilation and pressure control
- Lighting designed for coating inspection
- Optional 55–60°C curing operation
- Integrated exhaust-treatment interfaces
- Environmental product certification: CCAEP-2016-283
Information required for accurate equipment selection
Final performance depends on verified process conditions. A technical proposal should not be based on equipment name or nominal airflow alone.
Process and pollutant data
Provide the production process, pollutant composition, normal and peak concentration, temperature, humidity and any dust, mist or corrosive components.
Capacity and operating pattern
State normal, minimum and peak airflow or treatment capacity, daily operating hours, batch cycles and expected future expansion.
Site and utility conditions
Include available installation space, indoor or outdoor location, electrical standard, fuel or water availability, access constraints and project location.
Required project scope
Clarify whether the inquiry covers equipment supply, OEM manufacture, ductwork, controls, installation guidance, commissioning, training or spare parts.

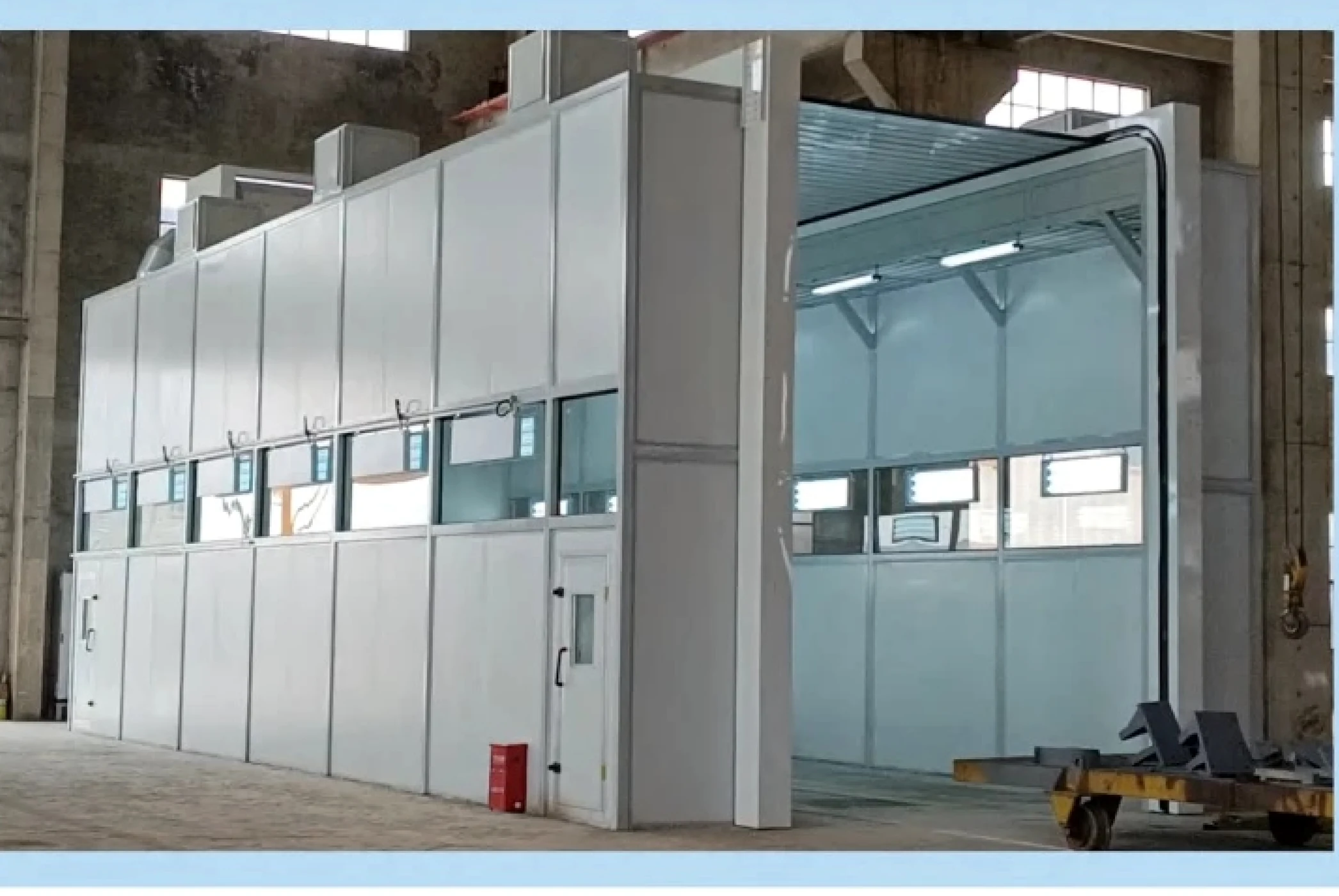

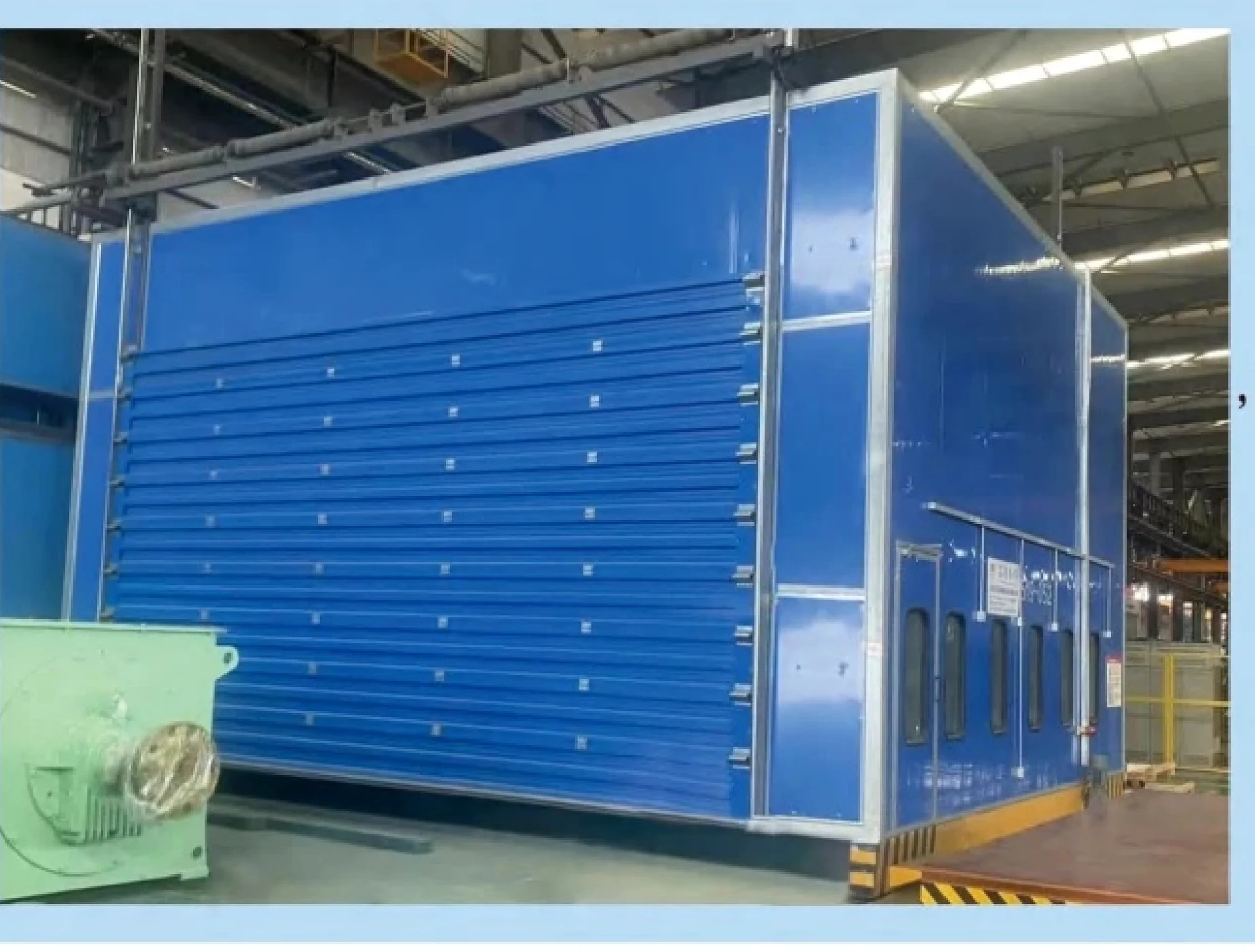

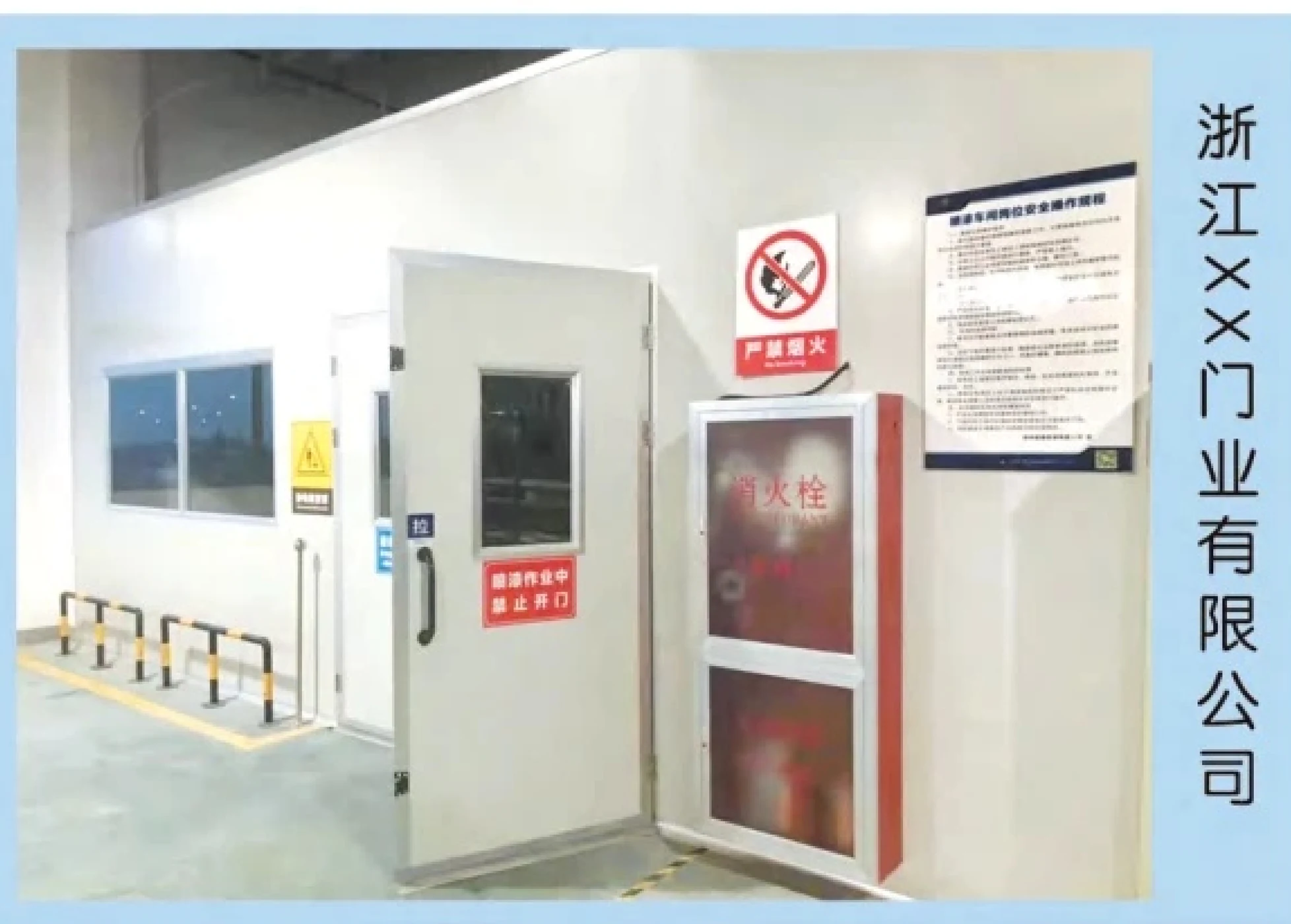

Equipment in the field
Clean product assets extracted from the supplied source material. No translated brochure pages are embedded.
PROJECT-SPECIFIC ENGINEERING
Tell us what your process needs to handle.
Share the airflow or capacity, pollutant composition, concentration, temperature, operating hours and site constraints. We will recommend the appropriate configuration.
